Start Forward Lower Fuselage

Start Forward Lower Fuselage



March 28, 2017


Hours Spent: 6

Finish Kit Delivery and unpacking, I don’t have the motivation to inventory it yet.

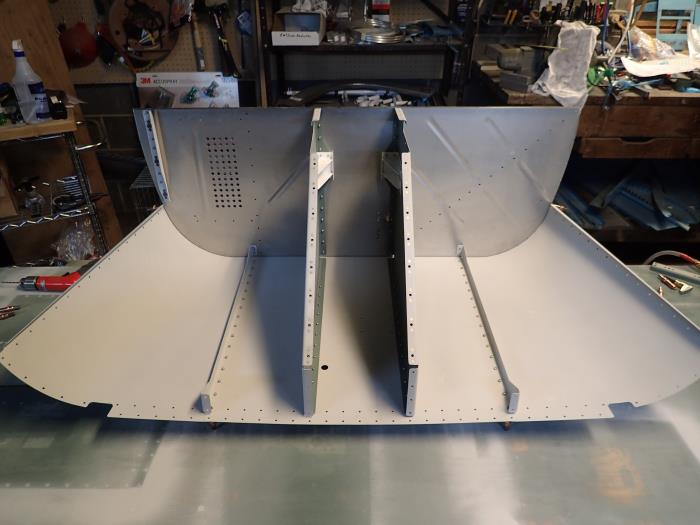

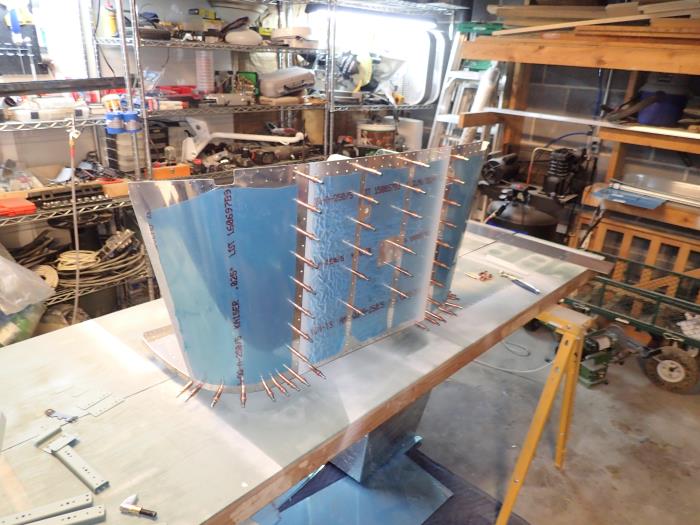

Page 22-02 Step 2: Machine countersinking tunnel rib flanges Step 3: Riveting nutplate to tunnel ribs and firewall bottom Step 4: Riveted engine mount brackets to tunnel ribs Step 5: Machine countersink more tunnel ribs flanges Step 6: Rivet tunnel ribs to lower skin Step 8: Rivet cooler stiffener to firewall bottom Step 9: Rivet nose gear nutplates
