Bottom Skin Part Prep

Bottom Skin Part Prep



March 24, 2017


Hours Spent: 3

Page 21-15 Step 5: Clecod Fuselage front corner skin in place Step 6: Riveted the corner skin in place Step 7: Repeated for other side Step 8: Seperated Bottom Stiffeners Step 9: Seperated Bottom Fuselage Doublers

Page 21-16 Step 1: Dimpled nutplate holes in fuselage bottom skin Step 2: Dimpled nutplates and attached to the bottom skin

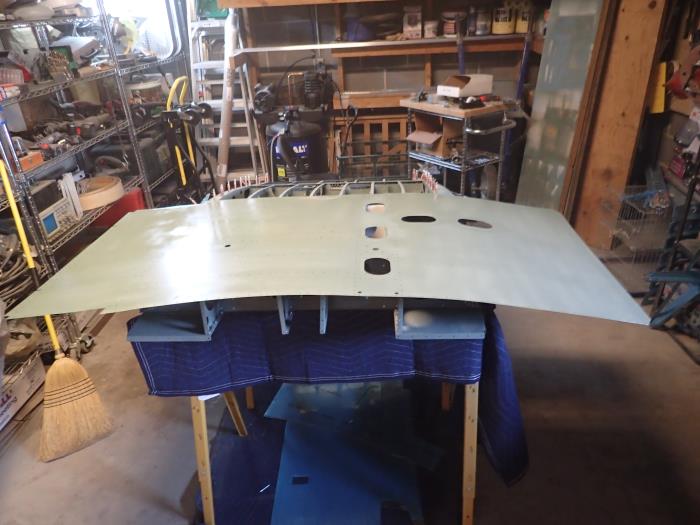

Deburred Primed parts and skin
